Datacube(NASA POWER Climate Data) to GeoCroissant Conversion Workflow, Metadata Generation

This notebook demonstrates the conversion of NASA POWER climate datacube (Xarray Dataset) to GeoCroissant metadata format for standardized data discovery and FAIR data principles.

GeoCroissant

Overview

  • Data Source: NASA POWER MERRA2 temporal dataset
  • Format: Zarr datacube stored on AWS S3
  • Variables: Temperature at 2 Meters (T2M) and other climate variables
  • Coverage: Global, monthly temporal resolution
  • Output: GeoCroissant JSON-LD metadata for data cataloging

Loading NASA POWER Dataset with Xarray

This cell demonstrates how to load the NASA POWER Zarr dataset using Xarray.

import xarray as xr

store = "https://nasa-power.s3.us-west-2.amazonaws.com/merra2/temporal/power_merra2_monthly_temporal_utc.zarr/"
ds = xr.open_zarr(store)

ds
<xarray.Dataset> Size: 231GB
Dimensions:          (time: 588, lat: 361, lon: 576)
Coordinates:
  * lat              (lat) float64 3kB -90.0 -89.5 -89.0 ... 89.0 89.5 90.0
  * lon              (lon) float64 5kB -180.0 -179.4 -178.8 ... 178.8 179.4
  * time             (time) datetime64[ns] 5kB 1981-01-31 ... 2029-12-31
Data variables: (12/472)
    CDD0             (time, lat, lon) float32 489MB dask.array<chunksize=(588, 30, 30), meta=np.ndarray>
    CDD10            (time, lat, lon) float32 489MB dask.array<chunksize=(588, 30, 30), meta=np.ndarray>
    CDD18_3          (time, lat, lon) float32 489MB dask.array<chunksize=(588, 30, 30), meta=np.ndarray>
    DISPH            (time, lat, lon) float32 489MB dask.array<chunksize=(588, 30, 30), meta=np.ndarray>
    EVLAND           (time, lat, lon) float32 489MB dask.array<chunksize=(588, 30, 30), meta=np.ndarray>
    EVLAND_00        (time, lat, lon) float32 489MB dask.array<chunksize=(588, 30, 30), meta=np.ndarray>
    ...               ...
    WS50M_MAX        (time, lat, lon) float32 489MB dask.array<chunksize=(588, 30, 30), meta=np.ndarray>
    WS50M_MAX_AVG    (time, lat, lon) float32 489MB dask.array<chunksize=(588, 30, 30), meta=np.ndarray>
    WS50M_MIN        (time, lat, lon) float32 489MB dask.array<chunksize=(588, 30, 30), meta=np.ndarray>
    WS50M_MIN_AVG    (time, lat, lon) float32 489MB dask.array<chunksize=(588, 30, 30), meta=np.ndarray>
    WS50M_RANGE      (time, lat, lon) float32 489MB dask.array<chunksize=(588, 30, 30), meta=np.ndarray>
    Z0M              (time, lat, lon) float32 489MB dask.array<chunksize=(588, 30, 30), meta=np.ndarray>
Attributes: (12/37)
    acknowledgement:            The Prediction of Worldwide Energy Resources ...
    comment:                    POWER data version 10.0.0 uses the source dat...
    conventions:                CF-1.8, ACDD-1.3
    creator_email:              bradley.macpherson@nasa.gov
    creator_name:               Bradley Macpherson
    date_created:               2024-08-19T08:32:59Z
    ...                         ...
    time_coverage_end:          2029-12-31T00:00:00
    time_coverage_resolution:   P1ME
    time_coverage_start:        1981-01-01T00:00:00
    time_standard:              Universal Time Coordinated (UTC)
    title:                      POWER Universal Time Coordinated (UTC) Time S...
    version:                    POWER Version 10.0.0
    • lat
      PandasIndex
      PandasIndex(Index([-90.0, -89.5, -89.0, -88.5, -88.0, -87.5, -87.0, -86.5, -86.0, -85.5,
       ...
        85.5,  86.0,  86.5,  87.0,  87.5,  88.0,  88.5,  89.0,  89.5,  90.0],
      dtype='float64', name='lat', length=361))
    • lon
      PandasIndex
      PandasIndex(Index([  -180.0, -179.375,  -178.75, -178.125,   -177.5, -176.875,  -176.25,
       -175.625,   -175.0, -174.375,
       ...
         173.75,  174.375,    175.0,  175.625,   176.25,  176.875,    177.5,
        178.125,   178.75,  179.375],
      dtype='float64', name='lon', length=576))
    • time
      PandasIndex
      PandasIndex(DatetimeIndex(['1981-01-31', '1981-02-28', '1981-03-31', '1981-04-30',
               '1981-05-31', '1981-06-30', '1981-07-31', '1981-08-31',
               '1981-09-30', '1981-10-31',
               ...
               '2029-03-31', '2029-04-30', '2029-05-31', '2029-06-30',
               '2029-07-31', '2029-08-31', '2029-09-30', '2029-10-31',
               '2029-11-30', '2029-12-31'],
              dtype='datetime64[ns]', name='time', length=588, freq=None))
  • acknowledgement :
    The Prediction of Worldwide Energy Resources (POWER) Project is funded through the NASA Applied Sciences Program within the Earth Science Division of the Science Mission Directorate.
    comment :
    POWER data version 10.0.0 uses the source data resolution.
    conventions :
    CF-1.8, ACDD-1.3
    creator_email :
    bradley.macpherson@nasa.gov
    creator_name :
    Bradley Macpherson
    date_created :
    2024-08-19T08:32:59Z
    derived_from :
    The data products are derived from data partners and the POWER science team.
    derived_info :
    The data products are derived from data partners.
    derived_link :
    https://power.larc.nasa.gov
    geospatial_bounds :
    POLYGON((-180.0 90.0, -180.0 -90.0, 180.0 -90.0, 180.0 90.0, -180.0 90.0))
    geospatial_lat_max :
    90.0
    geospatial_lat_min :
    -90.0
    geospatial_lat_resolution :
    0.5
    geospatial_lon_max :
    179.375
    geospatial_lon_min :
    -180.0
    geospatial_lon_resolution :
    0.625
    history :
    The POWER project was established in the early 2000s to support distribution of NASA research products.
    id :
    power_merra2_monthly_temporal_utc.zarr
    institution :
    NASA Langley Research Center (LaRC)
    keywords :
    Earth Science
    keywords_vocabulary :
    NASA Global Change Master Directory (GCMD) Science Keyword Version 9.1.5
    naming_authority :
    gov.nasa.larc.power
    processing_level :
    4
    project :
    Prediction Of Worldwide Energy Resource (POWER)
    publisher_email :
    paul.w.stackhouse@nasa.gov
    publisher_name :
    Paul Stackhouse
    references :
    https://power.larc.nasa.gov
    source :
    Prediction Of Worldwide Energy Resource (POWER)
    standard_name_vocabulary :
    CF Standard Name Table v72
    summary :
    The POWER project provides solar and meteorological datasets from NASA research for support of renewable energy, building energy efficiency, and agricultural needs.
    time_coverage_duration :
    P1ME
    time_coverage_end :
    2029-12-31T00:00:00
    time_coverage_resolution :
    P1ME
    time_coverage_start :
    1981-01-01T00:00:00
    time_standard :
    Universal Time Coordinated (UTC)
    title :
    POWER Universal Time Coordinated (UTC) Time Series
    version :
    POWER Version 10.0.0

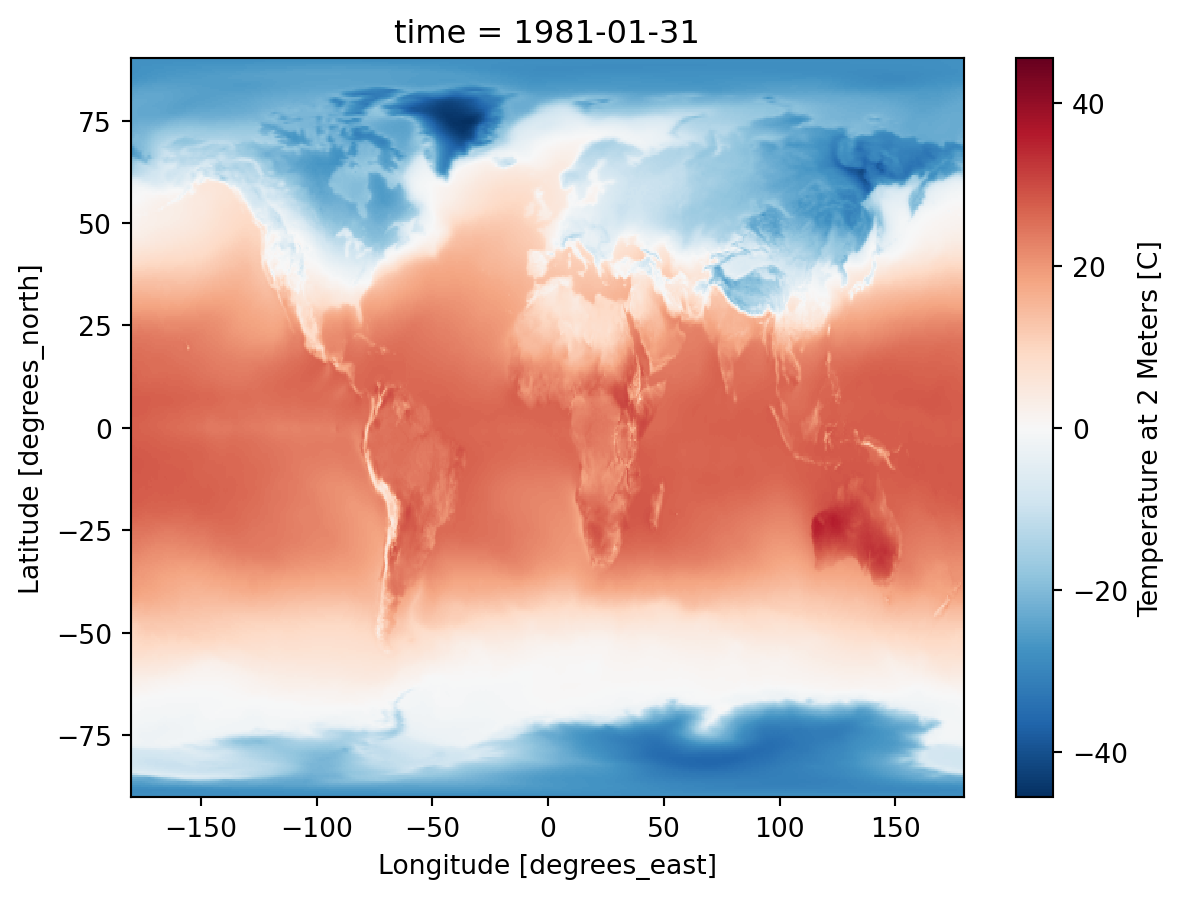

    • Visualizing Temperature Data

    This cell creates a basic visualization of the Temperature at 2 Meters (T2M) variable for the first time step.

    ds.T2M.isel(time=0).plot()

    GeoCroissant Converter

    import json
from datetime import datetime
import xarray as xr
import hashlib
import pandas as pd


def create_nasa_t2m_croissant():
    """Create GeoCroissant metadata for NASA T2M following TTL specifications."""

    zarr_url = "https://nasa-power.s3.us-west-2.amazonaws.com/merra2/temporal/power_merra2_monthly_temporal_utc.zarr/"

    # Load dataset
    ds_full = xr.open_zarr(zarr_url)

    # Get time bounds to make it universal
    start_date = pd.to_datetime(ds_full.time.values[0]).strftime('%Y-%m-%d')
    end_date = pd.to_datetime(ds_full.time.values[-1]).strftime('%Y-%m-%d')

    # Generate checksum
    hash_input = f"{zarr_url}T2M".encode('utf-8')
    checksum = hashlib.sha256(hash_input).hexdigest()

    # TTL-compliant GeoCroissant metadata
    croissant = {
        "@context": {
            "@language": "en",
            "@vocab": "https://schema.org/",
            "citeAs": "cr:citeAs",
            "column": "cr:column",
            "conformsTo": "dct:conformsTo",
            "cr": "http://mlcommons.org/croissant/",
            "geocr": "http://mlcommons.org/croissant/geo/",
            "rai": "http://mlcommons.org/croissant/RAI/",
            "dct": "http://purl.org/dc/terms/",
            "sc": "https://schema.org/",
            "data": {
                "@id": "cr:data",
                "@type": "@json"
            },
            "examples": {
                "@id": "cr:examples",
                "@type": "@json"
            },
            "dataType": {
                "@id": "cr:dataType",
                "@type": "@vocab"
            },
            "equivalentProperty": "cr:equivalentProperty",
            "extract": "cr:extract",
            "field": "cr:field",
            "fileProperty": "cr:fileProperty",
            "fileObject": "cr:fileObject",
            "fileSet": "cr:fileSet",
            "format": "cr:format",
            "includes": "cr:includes",
            "isLiveDataset": "cr:isLiveDataset",
            "jsonPath": "cr:jsonPath",
            "key": "cr:key",
            "md5": "cr:md5",
            "parentField": "cr:parentField",
            "path": "cr:path",
            "recordSet": "cr:recordSet",
            "references": "cr:references",
            "regex": "cr:regex",
            "repeated": "cr:repeated",
            "replace": "cr:replace",
            "samplingRate": "cr:samplingRate",
            "separator": "cr:separator",
            "source": "cr:source",
            "subField": "cr:subField",
            "transform": "cr:transform"
        },
        "@type": "sc:Dataset",
        "name": "NASA POWER T2M",
        "description": "Temperature at 2 Meters monthly data",
        "version": "1.0.0",
        "license": "CC-BY-4.0",
        "conformsTo": [
            "http://mlcommons.org/croissant/1.1",
            "http://mlcommons.org/croissant/geo/1.0"
        ],
        "citeAs": "@dataset{nasa_power_t2m, title={NASA POWER T2M}, url={https://nasa-power.s3.us-west-2.amazonaws.com}}",
        "datePublished": start_date,

        # Standard spatial coverage using schema.org
        "spatialCoverage": {
            "@type": "Place",
            "geo": {
                "@type": "GeoShape",
                "box": "-90.0 -180.0 90.0 179.375"
            }
        },

        # GeoCroissant spatial properties
        "geocr:coordinateReferenceSystem": "EPSG:4326",
        "geocr:spatialResolution": {
            "@type": "QuantitativeValue",
            "value": 0.5,
            "unitText": "degrees"
        },
        "geocr:temporalResolution": {
            "@type": "QuantitativeValue",
            "value": 1,
            "unitText": "month"
        },

        # Temporal coverage
        "temporalCoverage": f"{start_date}/{end_date}",

        "keywords": ["temperature", "climate", "nasa power", "t2m"],

        "distribution": [
            {
                "@type": "cr:FileObject",
                "@id": "zarr-data",
                "name": "zarr-data",
                "contentUrl": zarr_url,
                "encodingFormat": "application/zarr",
                "md5": checksum[:32]
            }
        ],

        "recordSet": [
            {
                "@type": "cr:RecordSet",
                "name": "t2m_data",
                "field": [
                    {
                        "@type": "cr:Field",
                        "name": "T2M",
                        "description": "Temperature at 2 Meters",
                        "dataType": "sc:Float",
                        "source": {
                            "fileObject": {
                                "@id": "zarr-data"
                            }
                        }
                    },
                    {
                        "@type": "cr:Field",
                        "name": "latitude",
                        "description": "Latitude coordinate",
                        "dataType": "sc:Float",
                        "source": {
                            "fileObject": {
                                "@id": "zarr-data"
                            }
                        }
                    },
                    {
                        "@type": "cr:Field",
                        "name": "longitude",
                        "description": "Longitude coordinate",
                        "dataType": "sc:Float",
                        "source": {
                            "fileObject": {
                                "@id": "zarr-data"
                            }
                        }
                    },
                    {
                        "@type": "cr:Field",
                        "name": "time",
                        "description": "Time coordinate",
                        "dataType": "sc:Text",
                        "source": {
                            "fileObject": {
                                "@id": "zarr-data"
                            }
                        }
                    }
                ]
            }
        ]
    }

    # Save metadata
    with open("nasa_t2m_croissant.json", "w") as f:
        json.dump(croissant, f, indent=2)

    return croissant


# Execute
croissant = create_nasa_t2m_croissant()
    import json

# Read and print the metadata
with open('nasa_t2m_croissant.json', 'r') as f:
    metadata = json.load(f)

# Pretty print the metadata
print(json.dumps(metadata, indent=2))
    {
  "@context": {
    "@language": "en",
    "@vocab": "https://schema.org/",
    "citeAs": "cr:citeAs",
    "column": "cr:column",
    "conformsTo": "dct:conformsTo",
    "cr": "http://mlcommons.org/croissant/",
    "geocr": "http://mlcommons.org/croissant/geo/",
    "rai": "http://mlcommons.org/croissant/RAI/",
    "dct": "http://purl.org/dc/terms/",
    "sc": "https://schema.org/",
    "data": {
      "@id": "cr:data",
      "@type": "@json"
    },
    "examples": {
      "@id": "cr:examples",
      "@type": "@json"
    },
    "dataType": {
      "@id": "cr:dataType",
      "@type": "@vocab"
    },
    "equivalentProperty": "cr:equivalentProperty",
    "extract": "cr:extract",
    "field": "cr:field",
    "fileProperty": "cr:fileProperty",
    "fileObject": "cr:fileObject",
    "fileSet": "cr:fileSet",
    "format": "cr:format",
    "includes": "cr:includes",
    "isLiveDataset": "cr:isLiveDataset",
    "jsonPath": "cr:jsonPath",
    "key": "cr:key",
    "md5": "cr:md5",
    "parentField": "cr:parentField",
    "path": "cr:path",
    "recordSet": "cr:recordSet",
    "references": "cr:references",
    "regex": "cr:regex",
    "repeated": "cr:repeated",
    "replace": "cr:replace",
    "samplingRate": "cr:samplingRate",
    "separator": "cr:separator",
    "source": "cr:source",
    "subField": "cr:subField",
    "transform": "cr:transform"
  },
  "@type": "sc:Dataset",
  "name": "NASA POWER T2M",
  "description": "Temperature at 2 Meters monthly data",
  "version": "1.0.0",
  "license": "CC-BY-4.0",
  "conformsTo": [
    "http://mlcommons.org/croissant/1.1",
    "http://mlcommons.org/croissant/geo/1.0"
  ],
  "citeAs": "@dataset{nasa_power_t2m, title={NASA POWER T2M}, url={https://nasa-power.s3.us-west-2.amazonaws.com}}",
  "datePublished": "1981-01-31",
  "spatialCoverage": {
    "@type": "Place",
    "geo": {
      "@type": "GeoShape",
      "box": "-90.0 -180.0 90.0 179.375"
    }
  },
  "geocr:coordinateReferenceSystem": "EPSG:4326",
  "geocr:spatialResolution": {
    "@type": "QuantitativeValue",
    "value": 0.5,
    "unitText": "degrees"
  },
  "geocr:temporalResolution": {
    "@type": "QuantitativeValue",
    "value": 1,
    "unitText": "month"
  },
  "temporalCoverage": "1981-01-31/2029-12-31",
  "keywords": [
    "temperature",
    "climate",
    "nasa power",
    "t2m"
  ],
  "distribution": [
    {
      "@type": "cr:FileObject",
      "@id": "zarr-data",
      "name": "zarr-data",
      "contentUrl": "https://nasa-power.s3.us-west-2.amazonaws.com/merra2/temporal/power_merra2_monthly_temporal_utc.zarr/",
      "encodingFormat": "application/zarr",
      "md5": "554b02b710a744b944cd2cf94002ceb6"
    }
  ],
  "recordSet": [
    {
      "@type": "cr:RecordSet",
      "name": "t2m_data",
      "field": [
        {
          "@type": "cr:Field",
          "name": "T2M",
          "description": "Temperature at 2 Meters",
          "dataType": "sc:Float",
          "source": {
            "fileObject": {
              "@id": "zarr-data"
            }
          }
        },
        {
          "@type": "cr:Field",
          "name": "latitude",
          "description": "Latitude coordinate",
          "dataType": "sc:Float",
          "source": {
            "fileObject": {
              "@id": "zarr-data"
            }
          }
        },
        {
          "@type": "cr:Field",
          "name": "longitude",
          "description": "Longitude coordinate",
          "dataType": "sc:Float",
          "source": {
            "fileObject": {
              "@id": "zarr-data"
            }
          }
        },
        {
          "@type": "cr:Field",
          "name": "time",
          "description": "Time coordinate",
          "dataType": "sc:Text",
          "source": {
            "fileObject": {
              "@id": "zarr-data"
            }
          }
        }
      ]
    }
  ]
}

    Validating GeoCroissant Metadata

    !mlcroissant validate --jsonld=nasa_t2m_croissant.json

    Temperature Data Visualization

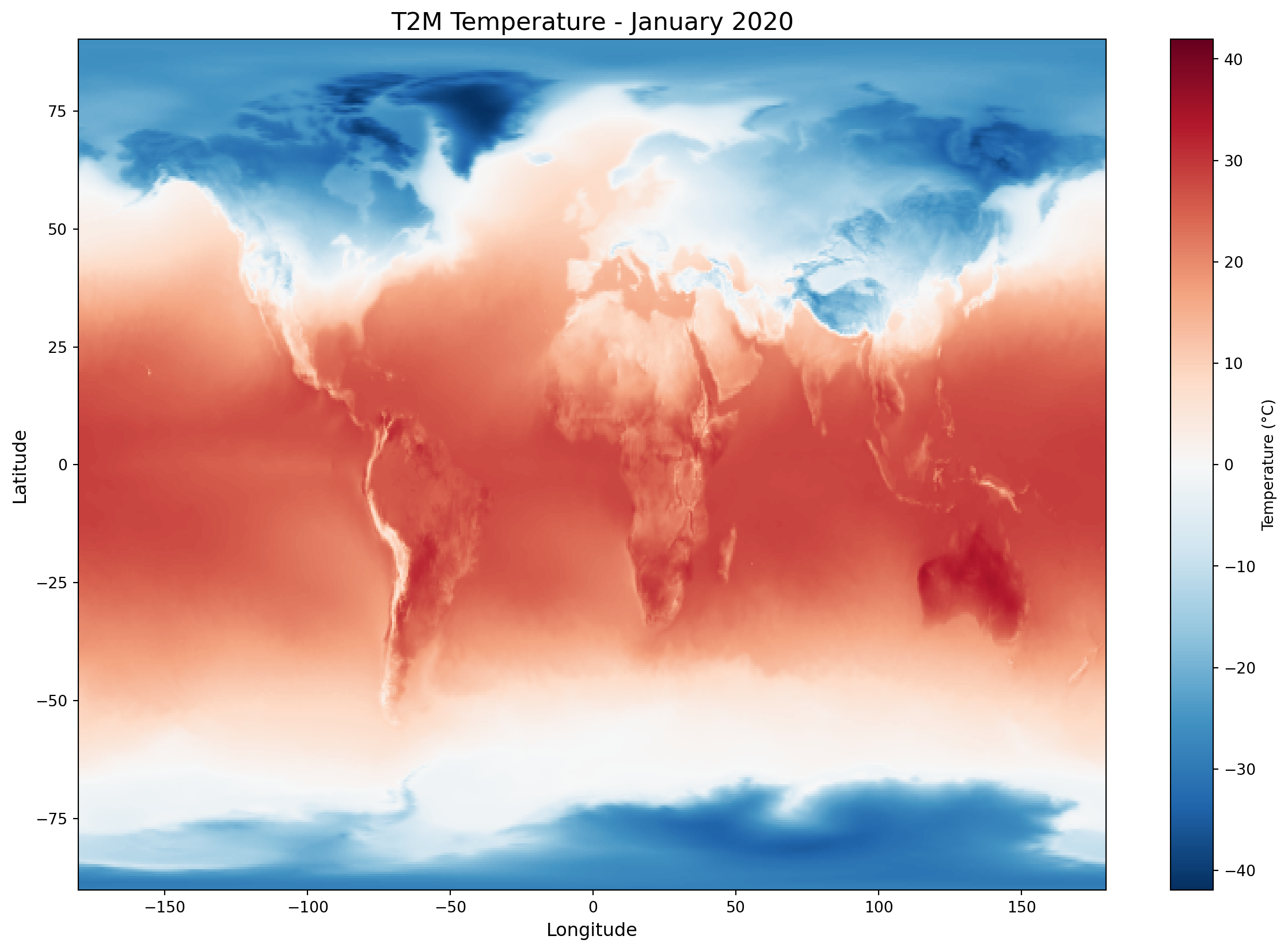

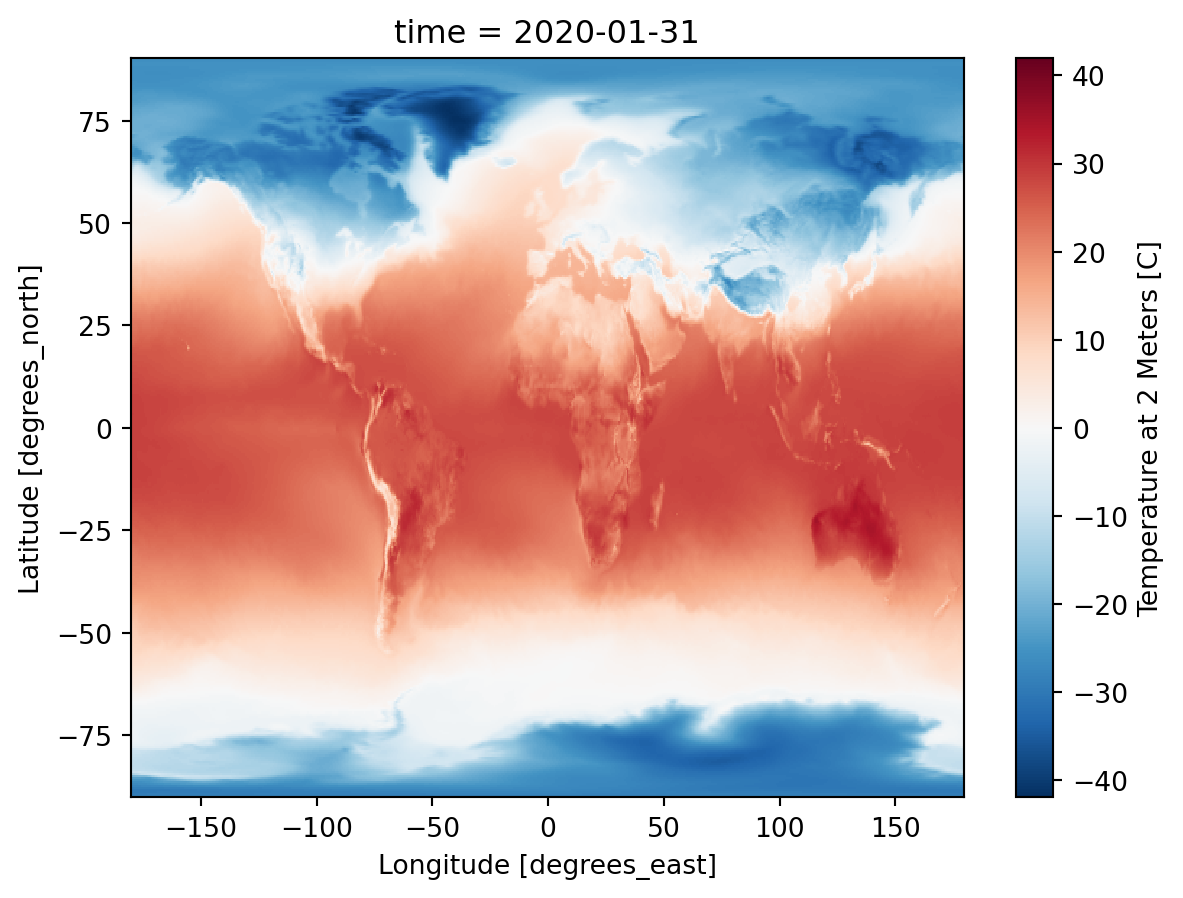

    Single Month Temperature Plot

    import json
import xarray as xr
import matplotlib.pyplot as plt

# 1. Load GeoCroissant metadata
with open('nasa_t2m_croissant.json', 'r', encoding='utf-8') as f:
    metadata = json.load(f)

# 2. Extract the Zarr datacube URL from the metadata
zarr_url = metadata['distribution'][0]['contentUrl']
print(f"Loading data from: {zarr_url}")

# 3. Load the dataset using Xarray
ds = xr.open_zarr(zarr_url)

# 4. Select the very first time slice of the T2M variable
first_month_data = ds['T2M'].isel(time=0)

# 5. Plot the simple visualization (using default standard size)
first_month_data.plot(cmap='RdBu_r', cbar_kwargs={'label': 'Temperature (°C)'})
plt.show()
    Loading data from: https://nasa-power.s3.us-west-2.amazonaws.com/merra2/temporal/power_merra2_monthly_temporal_utc.zarr/
